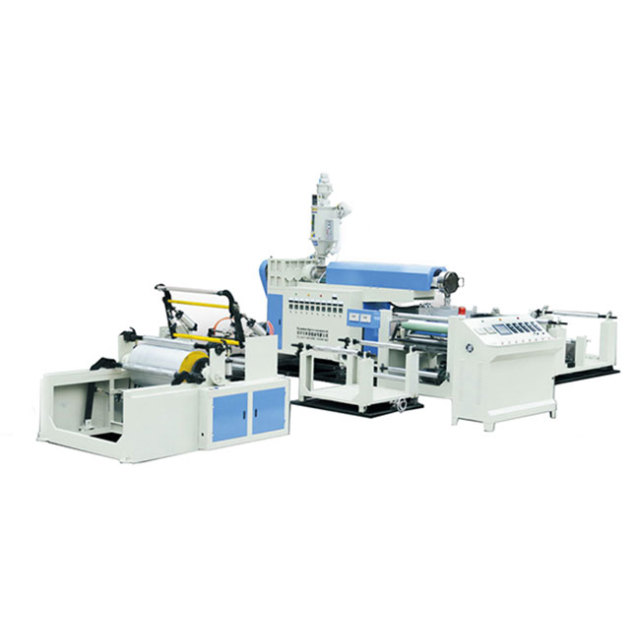

Ts-A900-1800 Series Single Screw Extrusion Laminating Compound Unit

Ts-A900-1800 Series Single Screw Extrusion Laminating Compound Unit

Product Details

Mechanical specifications

900

1100

1300

1700

Effective width

800mm

1000mm

1200mm

1600mm

Extrusion screw diameter

Φ80mm

Φ90mm

Φ90mm

Φ100mm

Extrusion volume

160kg/hr

180kg/hr

220kg/hr

240kg/hr

Total extruder power

30KW

30kw

37KW

45KW

Coating speed

80-150m/min

Applicable coating resin

LDPE, PP, EVA, EAA

Applicable substrate

BOPP, BOPET, BOPA, CPP, CPE, paper (PAPER), aluminum box (AL), non-woven fabric (NONWOVEN)

Coating film thickness

0.012~0.05mm

Net film thickness error

≦±5%

Composite cold roller









Main unwinding diameter

Φ1500mm (extra large roll diameter)

Auxiliary unwinding diameter

Φ450-600mm

Rewinding diameter

Φ1200mm (extra large roll diameter)
