| Model | TS-40Dx2x500 | TS-45Dx2x500 |
| Screw diameter | ￠40x2 | ￠45x2 |
| Film folding diameter | 500mm | 600mm |
| Thickness of film on one side | 0.006-0.06mm | 0.006-0.06mm |
| Extrusion volume | 30 | 35 |
| Aspect ratio | L/D28:1 | L/D28:1 |
| Monitor rate | 11 | 15 |
| Dimensions | 3800x2000x2800mm | 3800x2200x2800mm |
| Machine weight | 2.2T | 2.5T |

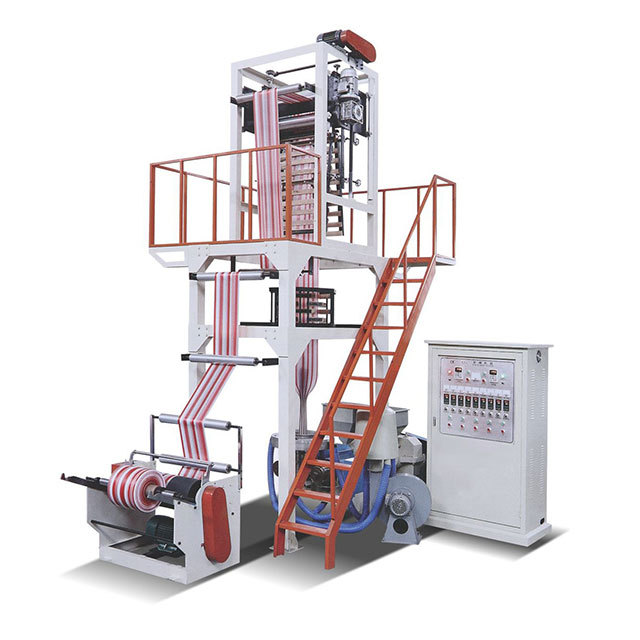

Co-extrusion A+B+A combination film blowing machine, whether producing HDPE material or LDPEAnd LLDPE materials, have unique characteristics.
Improved thinning through multi-layer co-extrusionThe physical strength of the film can be reduced by one host by using one host for the inner and outer layers.configuration, and at the same time achieve the purpose of reducing costs, energy saving and low consumption.
1. Two-tier co-extruded composite film can prolong the shelf life of liquid packaging.
2. Extruder barrel and screw are made of high quality alloy steel after nitrogen treatment and precision machining, Make optimum hardness and durability.
3. Auxiliary platform working table for making operation easy and is equipped to develop range.
4. Coiling device: double, double cut, which adopts torque motor to keep proper tension Winding neat,easy to change the volume.
Optional Equipped
1. Automatic suction machine
2. Surface Treatment
3. Rotary die Head
4. The air compressor
5. Quick screen changer
6. Double winding
