| Model | LFQ(WFQ)700 | LFQ(WFQ)1100 | LFQ(WFQ)1300 |
| Roll width | 600mm | 1000mm | 1200mm |
| Roll diameter | ￠600mm | ￠600mm | ￠600mm |
| Finished coil width | 30-600mm | 30-1000mm | 30-1200mm |
| Slitting speed | 5-180m/min | 5-180m/min | 5-180m/min |
| Motor Power | 2.7Kw | 3Kw | 3.5Kw |
| Machine weight | 1800kg | 2000Kg | 2200Kg |
| Dimensions | 2100x1800x1200mm | 2100x2000x1200mm | 2200x2100x1200mm |

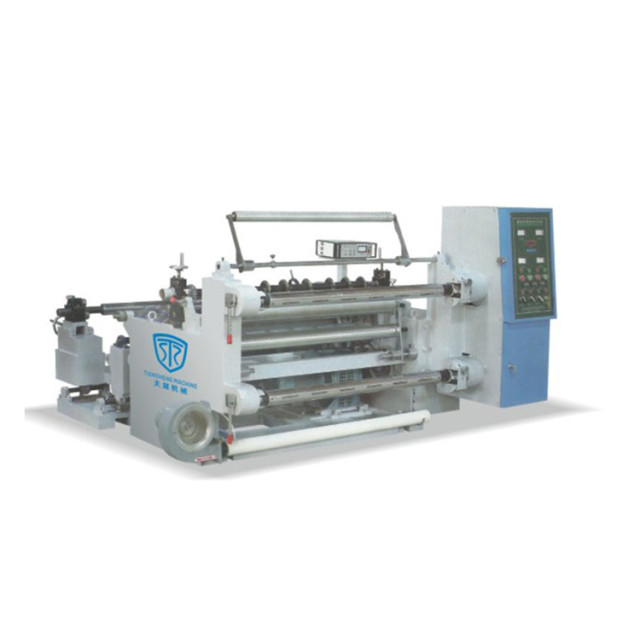

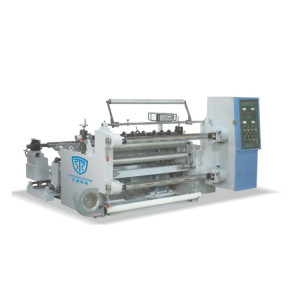

This machine is mainly suitable for the production of slitting of various roll materials such as BOPP, PET, CPP, CPE, PVC, PE, aluminum foil, paper, etc. During the production process, the materials can be trimmed and slit according to different needs.
1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake and auto tension controller.
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder clutch for rewinding tension control.
