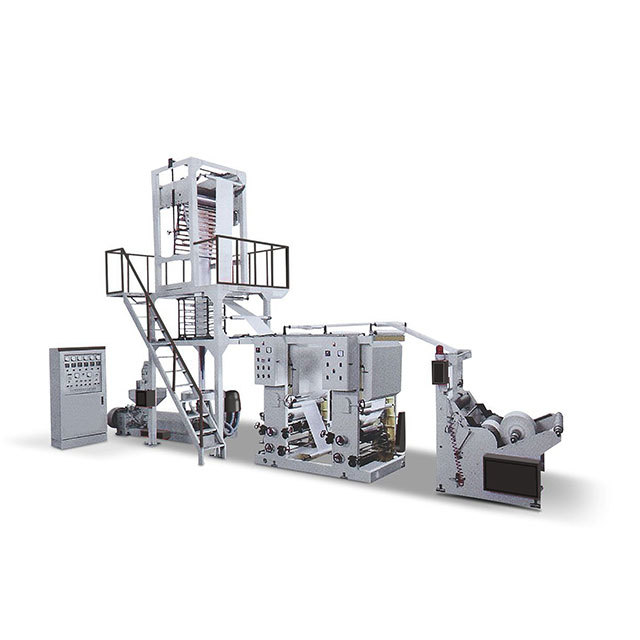

Plastic Blown Film Gravure Printing Unit

Plastic Blown Film Gravure Printing Unit

Optional Equipped
1. Automatic suction machine
2. Surface Treatment
3. Rotary die Head
4. The air compressor
5. Quick screen changer
6. Double winding

Product Details

The fuselage of the unit is a square steel frame, and the traction motor is with frequency conversion. Friction single winding, Lift etc. Suitable for blowing high and low pressure polyethylene industrial films and agricultural mulching films. even Continuous printing of various plastic films. Cloth and thin leather, packaging products. single-sidedPrinting is done in one go. 360-degree plate registration device, accurate and does not affect the pulling of the filmlong. The printing color can be adjusted arbitrarily at any time. No infrared tube drying device,It can dry 50%/min, and the image is clear and beautiful. (The gravure printing machine can also be replaced with flexosex press).

Model TS-P45 TS-P50 TS-P55 TS-P65
Screw diameter ¢45mm ¢50mm ¢55mm ¢65mm
Film folding diameter 100-500mm 300-600mm 400-800mm 600-1200mm
Film thickness single side 0.009-0.05mm 0.009-0.05mm 0.009-0.15mm 0.009-0.15mm
Extrusion volume 35Kg/h 40Kg/h 50Kg/h 55Kg/h
Aspect ratio 28:1/30:1 28:1/30:1 28:1/30:1 28:1/30:1
Monitor rate 11Kw 15Kw 18.5Kw 22Kw
Barrel temperature control 3 3 3 4
Average power consumpxion 10kW 12Kw 18Kw 30Kw
Dimensions 5000x2000x4100mm 5000x2100x4500mm 5500x2300x5200mm 5800x2600x6300mm
power supply 3.8V,50Hz,3Phase 3.8V,50Hz,3Phase 3.8V,50Hz,3Phase 3.8V,50Hz,3Phase
