| Model | DFASY600 | DFASY800 | DFASY1000 |
| Printing width | 600mm | 800mm | 1000mm |
| Printing speed | 10-120m/min | 10-120m/min | 10-120m/min |
| Alignment accuracy | <0.15mm | <0.15mm | <0.15mm |
| Printing length | 200-1250mm |
200-1250mm |
200-1250mm |
| Roll diameter | 600mm | 600mm | 600mm |
| Total power | 18Kw | 21Kw | 24Kw |
| Dimensions | 8800X1400X2000mm | 8800X1600X2000mm | 8800X1800X2000mm |

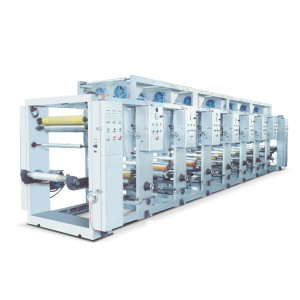

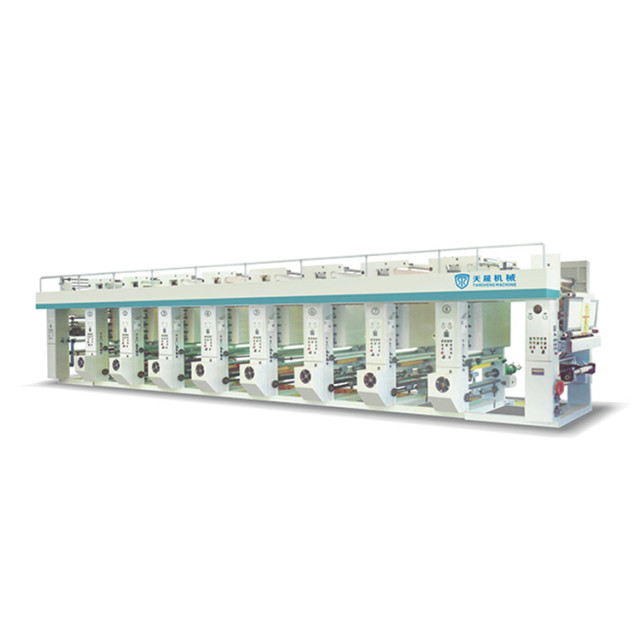

This machine is suitable for gravure multi-color printing of various plastic films, paper and other roll materials. Automatic tension control, computer color registration, shaftless plate mounting, pneumatic scraper, host frequency conversion speed regulation, stable tension, accurate registration, high work efficiency, reasonable design, easy and reliable use.
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bioglass paper and roll paperetc.And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
1. 360-Degree printing plate aligning device，easy operation.
2. Obturated oven automatic constant temperature system.
3. Magnetic powder brake control for unreeling and traction reeling with moment motor.
4. Reeling in and unreeling at dual stations，semi-automatic material change without machine halt.
5. Discharge automatic tension.
6. Co-clutch gearbox penumatic pressing print.
